Profesyonel sıvı içecek dolum ve paketleme makineleri imalatçısı
 |
| Place of Origin: | China（mainland） |
| Marka adı: | JIAYUAN |
| Sertifika: | CE SGS |
| Model Number: | GF1206 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Fiyat: | pls inquiry |
| Packaging Details: | standard wooden cases |
| Delivery Time: | 35 working days |
| Supply Ability: | 99 sets per year |
| Product name: | water bottling machine | function: | bottle filling capping |
|---|---|---|---|
| Model: | GF12-6 | Capactiy: | 4000B/H |
| Filling material: | water, juice | Control: | PLC+HMI |
| Vurgulamak: | Sıvı şişe dolum makinası,su şişeleme ekipmanları |
||
Purified Drinking Water PET Bottle Filling Sealing
Machine,Small Bottling Plant
Description
This machine is a filling capping 2-in-1 monblock, it is suitable for mineral water, purified water, spring water, juiced beverage and other non-carbonated beverage production. it's capacity is about 4000 bottles per hour (500ml PET bottle).
Product Details
Filling part
1). The washing bottle, filling, sealing are connecting with the thumbwheel card bottleneck transportation methods.
2). The rotating disk is all made of SUS304 stainless.
3). Filling method is gravity filling.
4). Filling valve manufactured by SUS304.
5). The filling valve structure design is reasonable, the filling quantity is accurate.

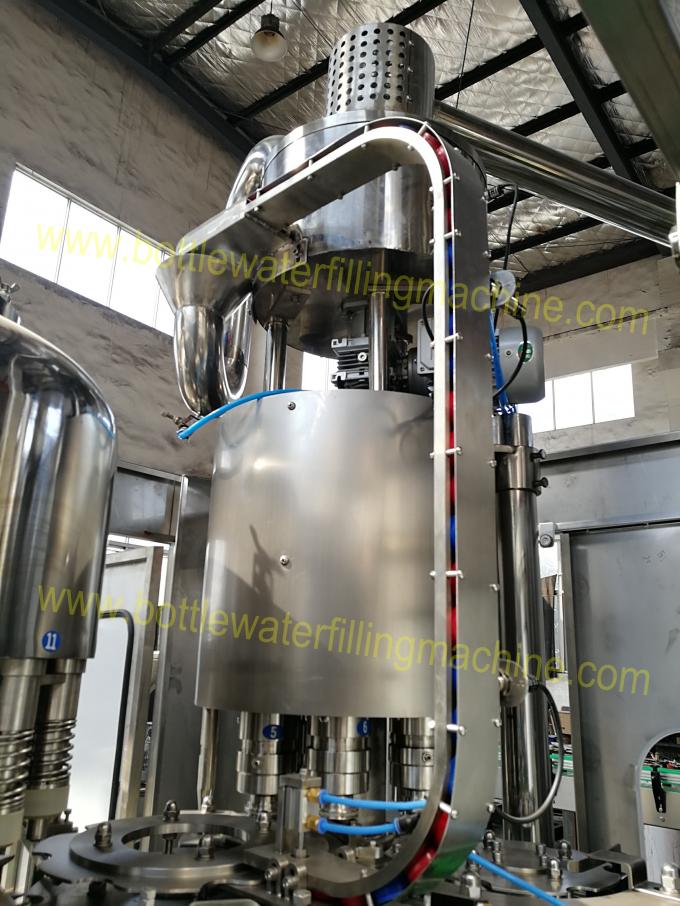

Capping part
The capping machine is the highest precision in 3-in-1 unit machine, on the reliability of equipment operation, has enormous influence on the defective rate of the product.
Introduced the world's most advanced Italian AROL capping machine technology, combining with the filling machine production experience improvement, and ask college of Shanghai Jiaotong university mechanical engineering institute of electrical and mechanical design and automation technology of experts and professors to help design.

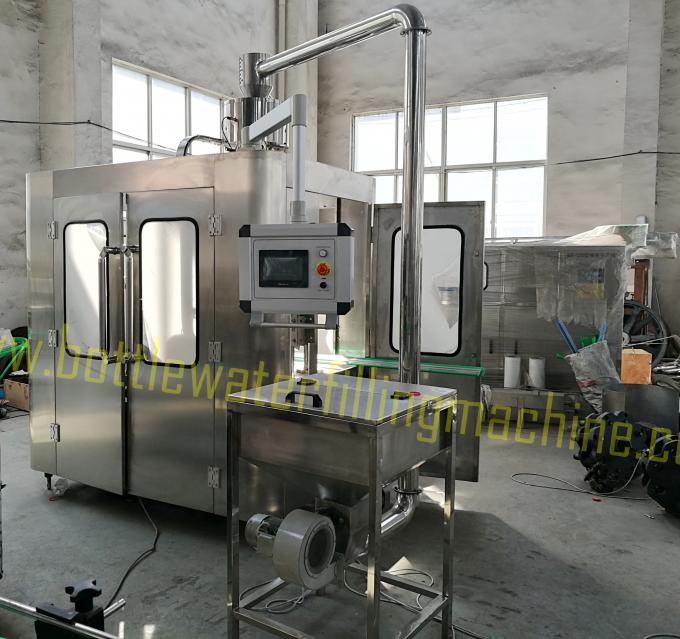

overall look
Our other capacity
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 |
| Number of rising heads | 16 | 18 | 24 | 32 | 40 | 50 |
| Number of filling heads | 12 | 18 | 24 | 32 | 40 | 50 |
| Number of capping heads | 6 | 6 | 8 | 10 | 12 | 15 |
| Bottle standard(mm) |
Diameter:Φ50-Φ108 Height:150-320 |
|||||
| Rated production capacity(500ml) | 4000BPH | 6000BPH | 10000BPH | 12000BPH | 16000BPH | 24000BPH |
| Installed capacity(KW) | 3.8 | 4.3 | 6.5 | 8.7 | 9.5 | 12 |
Water treatment system
Raw water tank—raw water pump—multi-medium filter--active carbon filter –water softner (Sodium Ion Exchanger)—precision filter—RO mainframe(including chemical cleaning device)—ozone generator—finished product water tank
we can supply all these plants, pls have a furthur learn...
