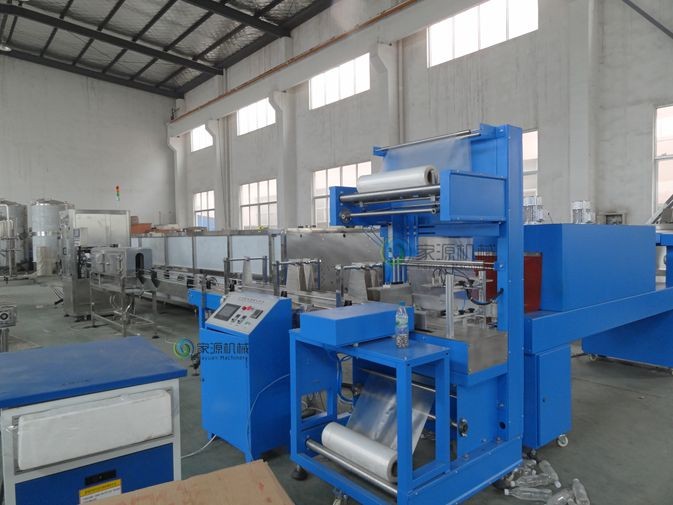

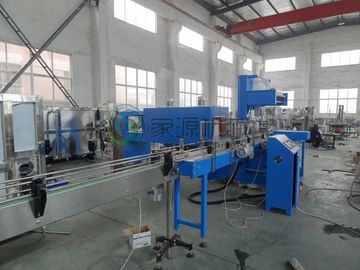

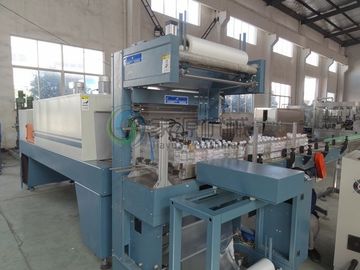

Glass Bottle Shrink Packing Machine

15000BPH Glass Bottle Shrink Packing Machine , Bottled Water Plants

Quick Detail:

1. Product: Glass bottle shrink packing plant

2. Model:WD-150A

3. Main Material: SS304

4. Production capacity: 15000bph(500ml)

5. Usage: Packing machine

6. Warranty: 1year free

Glass bottle shrink packing plant

Description:

Applicable Bottle Types:

This automatic shrink labeling machine n be used for various kind of bottle types, for example : round bottle, square bottle,flat bottle, curved bottle and cup-shaped, etc.

Electrical Appliance Configuration Specification

It adopts PLC programmable controller, imported servo motor, servodriver, frequency converter and sducer,besides, it adopts the positioning module  to ensure casting label precise, rapid and stable.

Facility character

Glass bottle shrink packing plant

1) Technical parameter

Facility typeWD-150A type

Facility external sizeL5050×W3300×H2100mm

wrap page max sizeL600×W400×H350mm

Shrinkage film size PE PVC POF

Shrinkage thermo thickness0.03-0.15mm

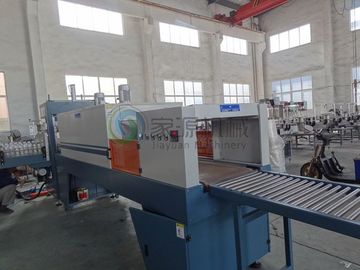

Thermo shrinkage tunnel temperature: 160 - 260°can adjust at will.

Max output per minute8-12bag

Facility power18Kw

Actual power15Kw/hr

Pressure requirement380/220V

Facility weight1.2T

Fan machine1.1Kw 2set 380V, 65W 4set 380V

2) Technical condition and requirement:

1package type

(1)350/500/550/600ML big bag4×6, 4×5; small bag3×4, 3×5 four type of package.

(2)1L1.5L2L2.5L big bag3×3, 3×4; small bag2×2, 2×3 four type of package

2Regarding can, we suggest adopt to package with tray, pack steadily.

3package speed815bagmin

4meet with pre-treatment filling speed of filling machine.

(1) 350/500/550/600ML big bag4×6,4×5,(1200015000bhrsmall bag3×5,3×4,(800010000bhr.

(2)1L1.5L2L big bag3×4, 3×3(50006000b small bag2×3, 2×230004000bhr.

5package materialPE thermo shrinkage film width200600mm, thickness0.080.12mm

 Competitive Advantage:

Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.

1. The company around 110 KM away from Shanghai, has convenient traffic.

2. The company was established in 1999, has rich experience.

3. We are an CE&SGS certified company.

4. We can produce kind of filling&packing machine, such as

1. Bottled water production line
2. Carbonated soft drinks production line
3. Hot-fill juice and tea production line
4. 5 Gallon bottled water production line
5. Water treatment machine and packing machine

5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
